Product description
Descriptions:

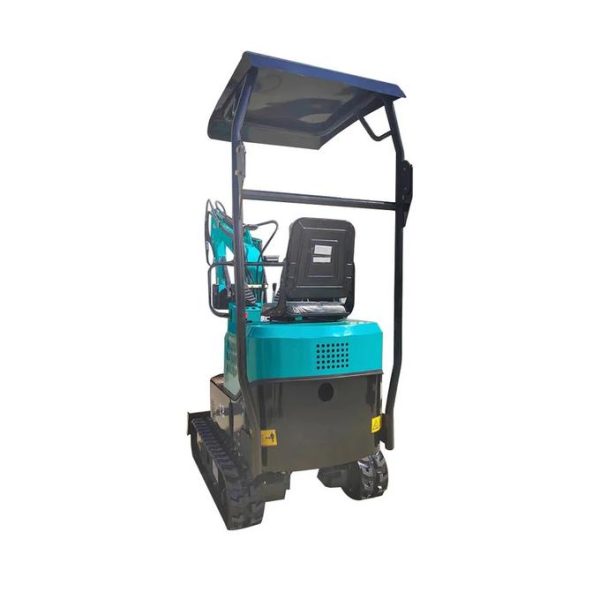

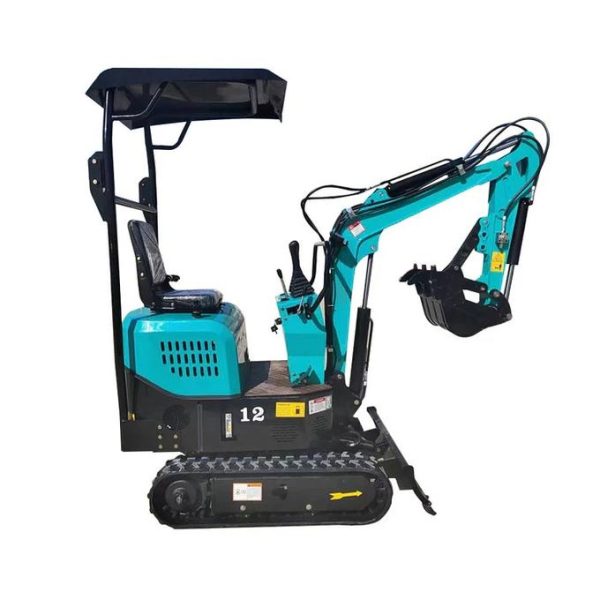

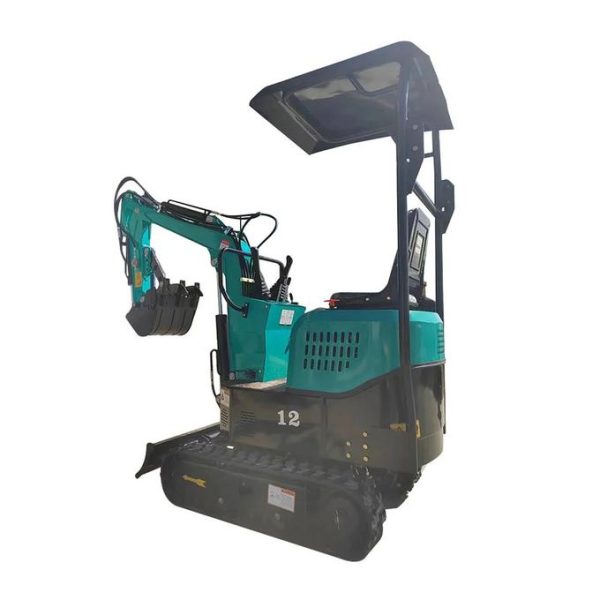

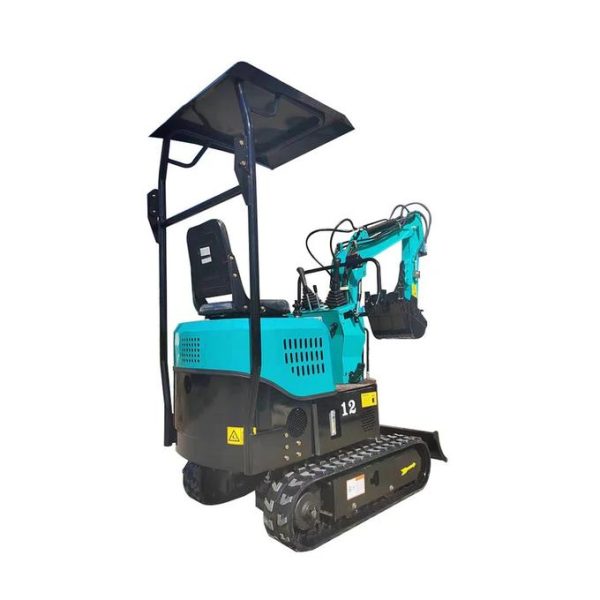

1-Ton Mini Excavator: With a compact design, 1-ton operating weight, and a maximum digging depth of 5.74feet, AGT’s lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces.
Simplified Safety and Maintenance: Our mini excavators increase safety with internal hydraulic hoses to ensure a lower risk of damage. Rear-opening compartments provide easy access to critical components, minimizing downtime and maximizing optimal operational performance.
Parameter:
| Engine | B&S | Standard bucket capacity | 0.025m³/400mm |
| Hydraulic pump | TianJin TianJi | Dimension | 2650*920*1470 |
| traveling motor | LiYuan hydraulic | Overall height | 1470mm |
| Swing motor | LiYuan hydraulic | Seat height | 1470mm |
| Main valve | SHMMECH | Overall weight | 982㎏ |
| Track dimension | 180*72*37cm | Distance of wheel | 900mm |
| Type of track tensioning | tension cylinder | Crawler length | 1250mm |
| Max. unloading height | 2650mm | Ground clearance of platform | 380mm |
| Max. unloading height | 1860 | Maximum Angle of climb | 30° |
| Max. digging radius | 2570 | Boom swing angle | fixed |
| Max. Digging depth | 1750 | Hydraulic tank capacity | 36L |
| Max. vertical digging depth | 1500 | Engine oil tank capacity | 1.8L |
| Min. swing radius | 1290 | Diesel tank capacity | 9.1L |
| Tail turning radius | 760 | Fuel consumption | 1L/H |
| Max. lifting height of dozer blade | 325 | Tracking width | 180mm |
| Max. Digging depth of dozer blade | 175 | Load Capacity | 200㎏ |
